Powder Grinding Plant

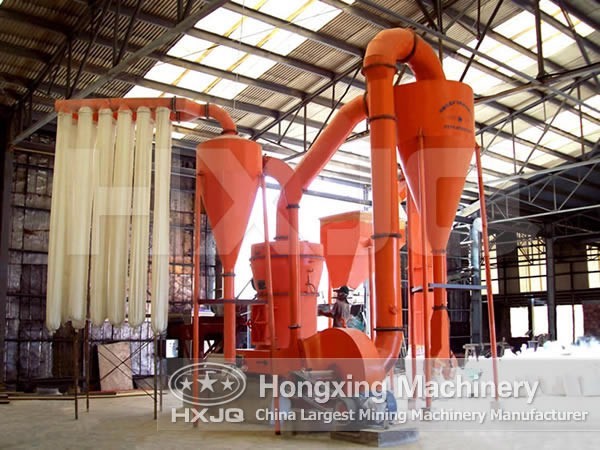

Powder grinding plant consists of mainframe, speed reducer, powder separator, blower, bag filter, pipes, cyclone, motor, etc.

• Features
• Technical Data
• Send Enquiry

Powder grinding plant consists of mainframe, speed reducer, powder separator, blower, bag filter, pipes, cyclone, motor, etc. The peripheral equipment is jaw crusher, bucket elevator, feeder, hopper, electric control panel, etc. Hongxing grinding production line  can grind all kinds of non-flammable and non-explosive minerals with Moh's hardness lower than 9 and humidity less than 6% and it is widely used in metallurgy, construction of building materials, chemical industry, mining industry, etc.

Advantages of Powder Making Line

1. The whole line is highly automatic, with low operation cost, high crushing ratio.
2. Low power consumption, high capacity, low pollution and easy maintenance.
3. The size of the finished product is even and in good shape, which meets the national standards.

Working Principle of Powder Making Plant

Large-sized materials are crushed by jaw crusher to the desired granularity and sent by bucket elevator to the material bin. The powder after grinding goes upwards together with the airflow, after separated by powder separator, the powder which can meet the fineness requirement enters into the cyclone powder collector through pipe together with the airflow, and then is discharged from the discharge valve as final product.
